Features

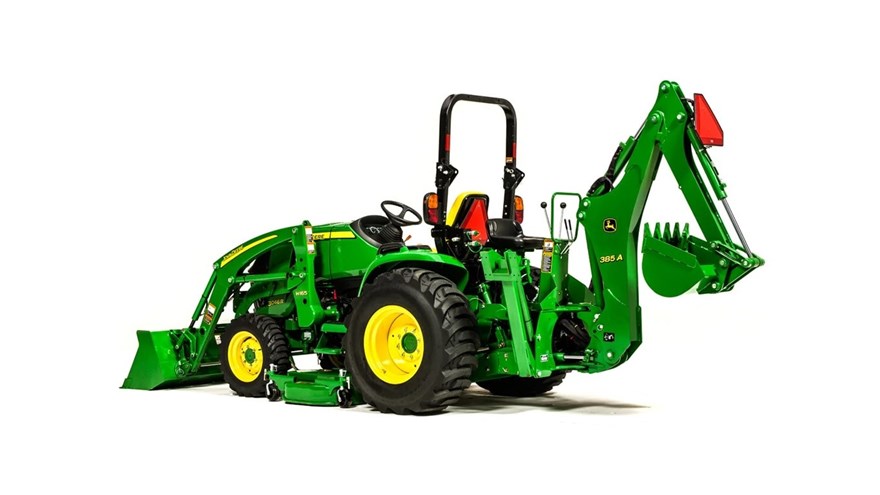

Tractor Backhoe Hookup
The backhoe's mainframe locks into rear tractor brackets, eliminating vertical and lateral movement for enhanced stability. This design ensures full weight transfer between stabilizers and the loader bucket, protects the tractor chassis by integrating both machines, and allows for quick attachment and detachment once the frame is installed.
Optimal Operator Comfort Features
Designed for optimal comfort, the backhoe offers user-friendly controls and a curved power boom for better visibility during digging. The control console and valve arrangement minimize heat and noise, enhance legroom, and ensure maximum comfort with user-friendly two-lever controls.
Serviceability and Angle of Departure
The platform allows quick service access by enabling easy removal and use of the grab handle to lift the entire valve assembly without adjusting control linkages. It also features efficient hose routing, a single-bolt seat post removal, and an externally mounted boom cylinder, all designed to improve serviceability and trailer loading with generous departure angles.
Dimensions
| Transport Height | 7.58 ft |
| Undercut | 19 in. |
| Transport Overhang | 4.23 ft |
| Reach From Center Line of Swing Pivot | 3.55 m |
| Loading Height (Bucket at 60 Degrees) | 1.98 m |
| Digging Depth | 2.61 m |
| Loading Reach (Bucket at 60 Degrees) | 3.64 ft |
| Stabilizer Spread Width - Up | 5.15 ft |
| Stabilizer Spread Width - Down | 2.41 m |
| Transport Height | 2.31 m |
| Undercut | 48 cm |
| Transport Overhang | 1.29 m |
| Reach From Center Line of Swing Pivot | 11.65 ft |
| Digging Depth | 8.53 ft |
| Loading Reach (Bucket at 60 Degrees) | 1.11 m |
| Loading Height (Bucket at 60 Degrees) | 6.5 ft |
| Stabilizer Spread Width - Up | 1.57 m |
| Stabilizer Spread Width - Down | 7.91 ft |
Backhoe
| Boom Lift Capacity | 372 kg |
| Boom Lift Capacity | 820 lb. |
| Swing Arc | 170 degree (angle) |
| Bucket Rotation | 180 degree (angle) |
| SAE Bucket Digging Force | 3752 lbf |
| SAE Bucket Digging Force | 16689 N |
| SAE Dipperstick Digging Force | 2449 lbf |
| Bucket Control Main Relief Valve Pressure | 17580 kPa |
| SAE Dipperstick Digging Force | 10893 N |
| Bucket Control Main Relief Valve Pressure | 2250 psi |
Bucket
| Bucket Widths | 9, 12, 16, 18, 20, 24 in. |
| Bucket Widths | 22.8, 30.5, 40.6, 45.7, 50.8, 61 cm |
| Shipping Weight | 22.2 cm (9 in.): 32 kg (70 lb); 30.5 cm (12 in.): 37 kg (82 lb); 40.6 cm (16 in.): 42 kg (92 lb); 45.7 cm (18 in.) heavy duty: 48 kg (106 lb); 50.8 cm (20 in.): 48 kg (106 lb); 61 cm (24 in.): 54 kg (120 lb) |
Weight
| Weight With Frame Adapter and 24-in. Bucket | 630 kg |
| Weight With Frame Adapter and 24-in. Bucket | 1390 lb. |
