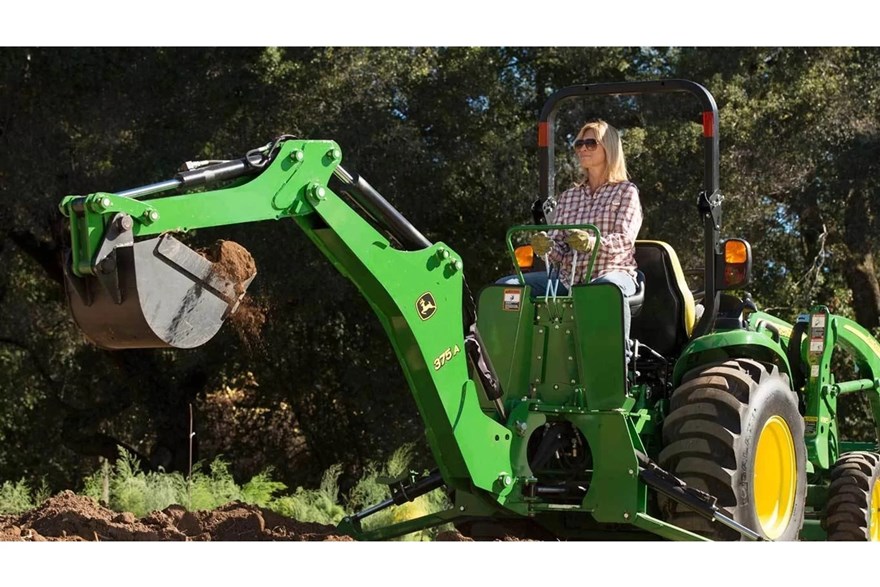

Features
Tractor Backhoe Hookup
The backhoe's mainframe locks into rear tractor brackets, eliminating vertical and lateral movement for enhanced stability. This design ensures full weight transfer between stabilizers and the loader bucket, protects the tractor chassis by integrating both machines, and allows for quick attachment and detachment once the frame is installed.
Optimal Operator Comfort Features
Designed for optimal comfort, the backhoe offers user-friendly controls and a curved power boom for better visibility during digging. The control console and valve arrangement minimize heat and noise, enhance legroom, and ensure maximum comfort with user-friendly two-lever controls.
Serviceability and Angle of Departure
The platform allows quick service access by enabling easy removal and use of the grab handle to lift the entire valve assembly without adjusting control linkages. It also features efficient hose routing, a single-bolt seat post removal, and an externally mounted boom cylinder, all designed to improve serviceability and trailer loading with generous departure angles.
Dimensions
| Digging Depth | 2.38 m |
| Digging Depth | 7.81 ft |
| Loading Height (Bucket at 60 Degrees) | 1.72 m |
| Loading Height (Bucket at 60 Degrees) | 5.64 ft |
| Reach From Center Line of Swing Pivot | 3.27 m |
| Reach From Center Line of Swing Pivot | 10.73 ft |
| Transport Height | 2.16 m |
| Transport Height | 7.08 ft |
| Loading Reach (Bucket at 60 Degrees) | 1.11 m |
| Loading Reach (Bucket at 60 Degrees) | 3.64 ft |
| Transport Overhang | 1.22 m |
| Transport Overhang | 4 ft |
| Undercut | 44 cm |
| Undercut | 17.5 in. |
| Stabilizer Spread Width - Up | 1.67 m |
| Stabilizer Spread Width - Up | 5.48 ft |
| Stabilizer Spread Width - Down | 2.26 m |
| Stabilizer Spread Width - Down | 7.41 ft |
Backhoe
| Swing Arc | 170 degree (angle) |
| Bucket Rotation | 180 degree (angle) |
| Boom Lift Capacity | 270 kg |
| Boom Lift Capacity | 595 lb. |
| SAE Dipperstick Digging Force | 9078 N |
| SAE Dipperstick Digging Force | 2041 lbf |
| SAE Bucket Digging Force | 13624 N |
| SAE Bucket Digging Force | 3063 lbf |
| Bucket Control Main Relief Valve Pressure | 17580 kPa |
| Bucket Control Main Relief Valve Pressure | 2250 psi |
Bucket
| Bucket Widths | 22.8, 30.5, 40.6, 45.7, 50.8, 61 cm |
| Bucket Widths | 9, 12, 16, 18, 20, 24 in. |
| Shipping Weight | 22.2 cm (9 in.): 32 kg (70 lb); 30.5 cm (12 in.): 37 kg (82 lb); 40.6 cm (16 in.): 42 kg (92 lb); 45.7 cm (18 in.) heavy duty: 48 kg (106 lb); 50.8 cm (20 in.): 48 kg (106 lb); 61 cm (24 in.): 54 kg (120 lb) |
Weight
| Weight With Large Frame Adapter and 24-in. Bucket | 567 kg |
| Weight With Large Frame Adapter and 24-in. Bucket | 1250 lb. |
