Features
Service and Durability
These mowers feature easily removable drive-over ramps for belt service, greaseable blade spindles and drive shaft to extend bearing life, reinforced deck edges for durability, and a plastic chute guard for added protection.
Compatible with Front/Rear Implements

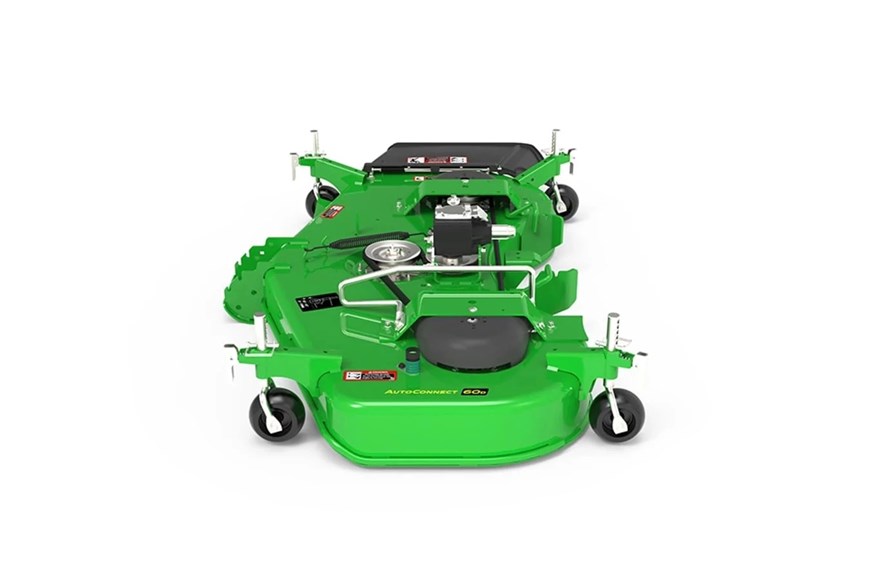

The High-Capacity AutoConnect™ deck is compatible with rear 3-point hitch attachments, backhoes, and loaders. The operator can keep these extra implements attached while mowing.
Mower Height Adjustment
The height-of-cut (HOC) adjustment is located on the tractor and can easily be adjusted with the turn of the knob. To install/remove mower deck, the HOC adjustment knob must be set in the install position.
Dimensions
| Cutting Width | 60 in. |
| Cutting Width | 152 cm |
| Overall Width - Deflector Up | 62.5 in. |
| Overall Width - Deflector Up | 159 cm |
| Overall Width - Deflector Down | 73 in. |
| Overall Width - Deflector Down | 185 cm |
| Cutting Height | 1 - 4 in. |
| Cutting Height | 2.54 - 10.16 cm |
| Deck Thickness | 0.1793 in. |
| Deck Thickness | 4.554 mm |
| Deck Thickness | 7 gauge |
Blades
| Number Of Blades | 3 |
| Length | 21.1 in. |
| Length | 53.5 cm |
| Thickness | 0.25 in. |
| Thickness | 0.63 cm |
| Blade Tip Speed (At 2600 rpm) | 15437 fpm |
| Blade Tip Speed (At 2600 rpm) | 4705.2 m/min |
Weight
| Approximate Weight | 258 lb. |
| Approximate Weight | 117 kg |
Compatibility
| Compatible Models | 1023E, 1025R, 1026R, and model year 2017 and new 2025R Tractors |
Wheels
| Front Gauge Wheel Size | 5 in. / 12.7 cm |
| Rear Gauge Wheel Size | 5 in. / 12.7 cm |
Spindles
| Diameter | 1 in. |
| Diameter | 2.54 cm |
Mulching
