Features
Boom Lockout for Easy Service
A hydraulic shut-off valve prevents the loader from lowering unexpectedly, enabling safe maintenance under the boom.
Attach or Detach with Single-Point Hydraulic Connection

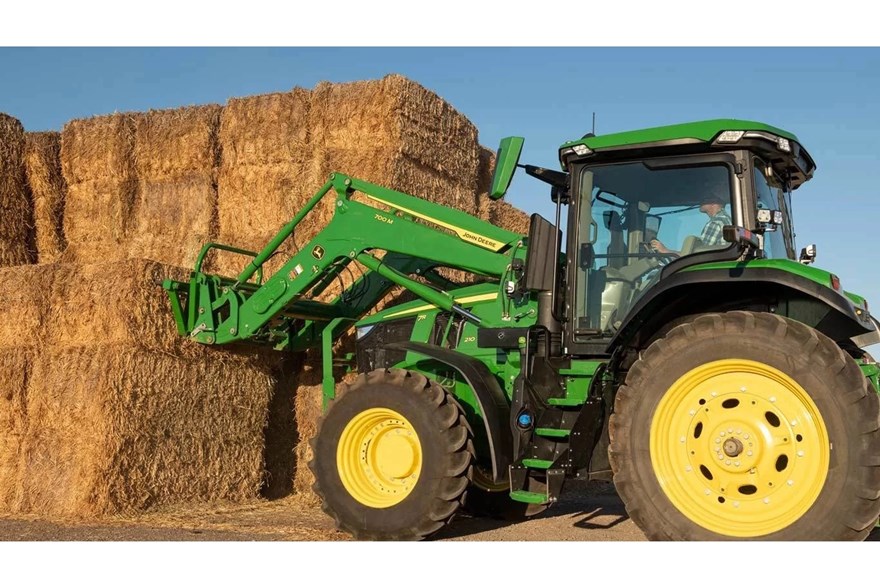

The 700M Loader uses a single-point hydraulic connection that combines hydraulic, electrical, and lockout functions, enabling fast installation with just a handle push. This design significantly reduces the time needed to attach or detach the loader.
Toolless Features Make for Quick and Easy Loader Removal
John Deere loaders attach and detach from tractors in minutes without tools, using mast pins, parking stands, and a single-point hydraulic connection. This design allows operators to quickly remove the loader for non-loader tasks, boosting efficiency.
Loader
| Lift Capacity At Full Height - Measured At Pivot (U) | 3310 kg |
| Lift Capacity At Full Height - Measured At Pivot (U) | 7282 lb. |
| Boom Breakout Force - Measured At Pivot (Y) | 4091 kg |
| Boom Breakout Force - Measured At Pivot (Y) | 9000 lb. |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 4776 kg |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 10507 lb. |
| Maximum Lift Height (A) | 4704 mm |
| Maximum Lift Height (A) | 185 in. |
| Clearance At Full Height - Bucket Dumped | 3659 mm |
| Clearance At Full Height - Bucket Dumped | 144 in. |
| Dump Angle (E) | 70 degree (angle) |
| Rollback Angle (G) | 45 degree (angle) |
