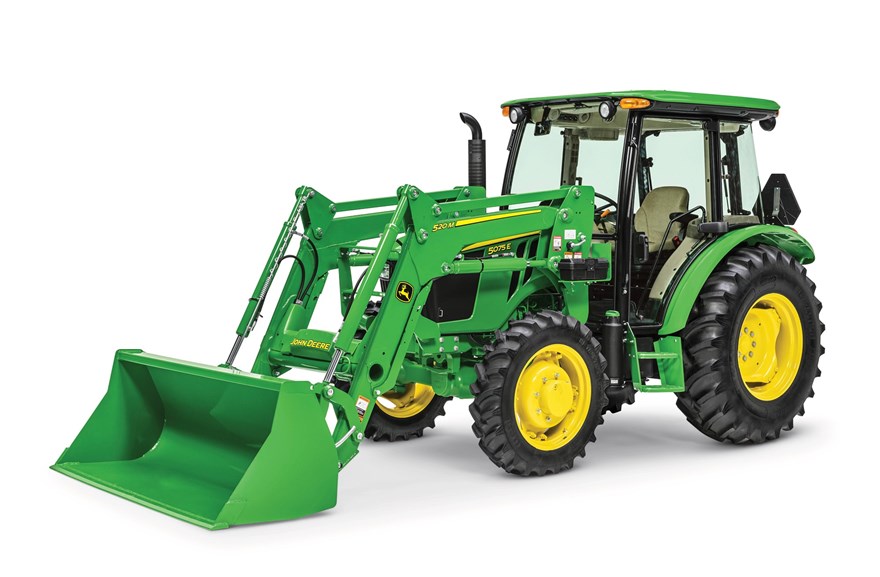

Features
Loader Removal Made Easy
John Deere loaders are easily removed and reinstalled on tractors without tools. The parking system allows removing or attaching the loader to the tractor in minutes without the need for tools.
Boom Lockout for Easy Service
A hydraulic shut-off valve prevents the loader from lowering unexpectedly, enabling safe maintenance under the boom.
Single-Point Hydraulic Connection Saves Time
A single-point hydraulic connection saves operators time when attaching or detaching the loader. This system also includes connections for electrical needs and a hydraulic lockout valve, allowing for fast installation via a simple handle pull.
Tractor
| Model | 5085E, 5090E, 5100E FT4 |
| Front Tire | 320/85 R24 BKT (12.4 R24) |
| Rear Tire | 18.4 R30 |
| Wheelbase | 90 in. |
| Pump Capacity | 11 gpm |
| Rated Pressure | 2828 psi |
Loader
| Base Weight | 826.9 kg |
| Leveling Configuration | Mechanical Self Leveling (MSL) |
| Bucket Used | General Purpose 1850 mm / 73 in. |
| Bucket Weight | 178 kg |
| Bucket Weight | 392 lb. |
| Lift Capacity At Full Height - Measured At Pivot (U) | 1182 kg |
| Lift Capacity At Full Height - Measured At Pivot (U) | 2606 lb. |
| Lift Capacity At Full Height - Measured At 800 mm Ahead Of Pivot | 1280 kg |
| Lift Capacity At Full Height - Measured At 800 mm Ahead Of Pivot | 2822 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 1611 kg |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 3552 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X) | 1584 kg |
| Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X) | 3492 lb. |
| Boom Breakout Force - Measured At Pivot (Y) | 2174 kg |
| Boom Breakout Force - Measured At Pivot (Y) | 4793 lb. |
| Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z) | 1836 kg |
| Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z) | 4048 lb. |
| At Maximum Height (VV) | 1884 kg |
| At Maximum Height (VV) | 4154 lb. |
| At 59-in. (1500 mm) Lift Height (XX) | 3095 kg |
| At 59-in. (1500 mm) Lift Height (XX) | 6823 lb. |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 3058 kg |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 6742 lb. |
| Maximum Lift Height (A) | 3343 mm |
| Maximum Lift Height (A) | 132 in. |
| At Full Height - Bucket Level (B) | 3148 mm |
| At Full Height - Bucket Level (B) | 124 in. |
| Clearance At Full Height - Bucket Dumped | 2516 mm |
| Clearance At Full Height - Bucket Dumped | 99 in. |
| Overall Length (I+F) | 4500 mm |
| Overall Length (I+F) | 176.4 in. |
| Digging Depth (H) | 93 mm |
| Digging Depth (H) | 3.7 in. |
| Reach - At Maximum Height (D) | 839 mm |
| Reach - At Maximum Height (D) | 33 in. |
| Reach - At Ground Level - Bucket Level | 2172 mm |
| Reach - At Ground Level - Bucket Level | 85.5 in. |
| Dump Angle (E) | -54 degree (angle) |
| Rollback Angle (G) | 43 degree (angle) |
| Dump Angle, Ground | -109 degree (angle) |
| Loader Raise | 3.3 seconds |
| Loader Lower | 3.4 seconds |
| Bucket Dump | 2.6 seconds |
| Bucket Rollback | 2.6 seconds |
