Features

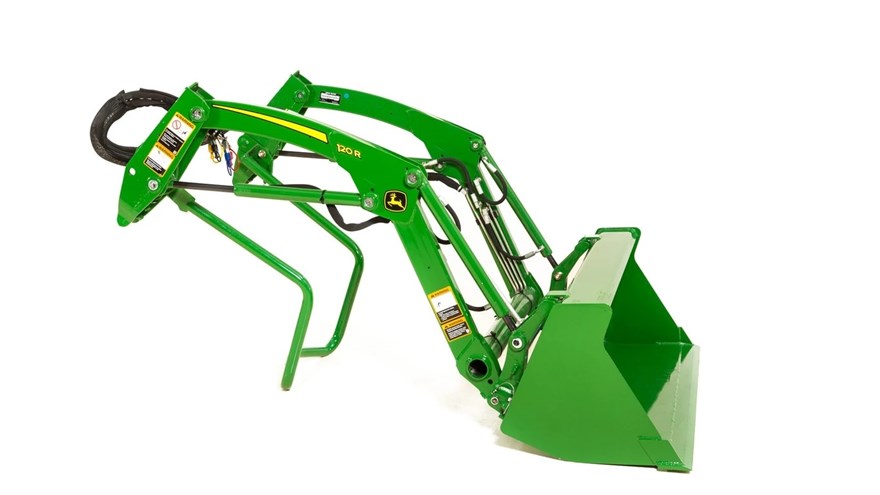

Optional Field-Installed Mechanical Self-Leveling Loader (MSL)
The MSL loader for 1, 2, 3D, and 3E Tractors enables operators of all experience levels to handle loads with greater ease and confidence, thanks to features like consistent implement positioning, increased lift capacity, and reduced material loss.
End-of-Pin Lubrication
Grease fittings accessible from the loader’s side make maintenance easier.
Remove and Mount Loader With Quik-Park™ Mounting System
The Quik-Park™ system allows the loader to be removed and mounted without tools, streamlining the process. This system is designed to enable quick and easy transition from mounted to parked positions, enhancing operational efficiency.
Loader
| Base Weight | 283.88 kg |
| Bucket Used | Materials 1350 mm |
| Bucket Weight | 83 kg |
| Bucket Weight | 183 lb. |
| Lift Capacity At Full Height - Measured At Pivot (U) | 364 kg |
| Lift Capacity At Full Height - Measured At Pivot (U) | 803 lb. |
| Lift Capacity at Full Height - Measured at 500 mm Ahead of Pivot | 251 kg |
| Lift Capacity at Full Height - Measured at 500 mm Ahead of Pivot | 553 lb. |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 434 kg |
| Lift Capacity At 59 in. (1500 mm) - Measured At Pivot | 957 lb. |
| Lift Capacity at 59 in (1500 mm) - Measured at 500 mm Ahead of Pivot | 312 kg |
| Lift Capacity at 59 in. (1500 mm) - Measured at 500 mm Ahead of Pivot | 688 lb. |
| Boom Breakout Force - Measured At Pivot (Y) | 890 kg |
| Boom Breakout Force - Measured At Pivot (Y) | 1963 lb. |
| Boom Breakout Force - Measured at 500 mm Ahead of Pivot | 606 kg |
| Boom Breakout Force - Measured at 500 mm Ahead of Pivot | 1335 lb. |
| At Maximum Height (VV) | 648 kg |
| At Maximum Height (VV) | 1428 lb. |
| At 59-in. (1500 mm) Lift Height (XX) | 777 kg |
| At 59-in. (1500 mm) Lift Height (XX) | 1713 lb. |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 753 kg |
| Bucket Rollback Force Capacity At Ground-Level Line (ZZ) | 1659 lb. |
| Maximum Lift Height (A) | 1828 mm |
| Maximum Lift Height (A) | 72 in. |
| At Full Height - Bucket Level (B) | 1666 mm |
| At Full Height - Bucket Level (B) | 65.6 in. |
| Clearance At Full Height - Bucket Dumped | 1304 mm |
| Clearance At Full Height - Bucket Dumped | 51.3 in. |
| Overall Length (I+F) | 2888 mm |
| Overall Length (I+F) | 113.7 in. |
| Digging Depth (H) | -86 mm |
| Digging Depth (H) | -3.4 in. |
| Reach - At Maximum Height (D) | 698 mm |
| Reach - At Maximum Height (D) | 27.5 in. |
| Reach - At Ground Level - Bucket Level | 1288 mm |
| Reach - At Ground Level - Bucket Level | 50.7 in. |
| Dump Angle (E) | -40.5 degree (angle) |
| Rollback Angle (G) | 30.08 degree (angle) |
| Dump Angle, Ground | -115.4 degree (angle) |
| Loader Raise | 3.7 seconds |
| Loader Lower | 2.6 seconds |
| Bucket Dump | 4.1 seconds |
| Bucket Rollback | 2.5 seconds |
Tractor
| Model | 2025R, 2026R |
| Front Tire | 23x8.50-12 6PR R4 CL |
| Rear Tire | 12.00-16.5 6PR R4 CL |
| Wheelbase | 1600 mm |
| Pump Capacity | 26.5 L/min |
| Rated Pressure | 2146 psi |
